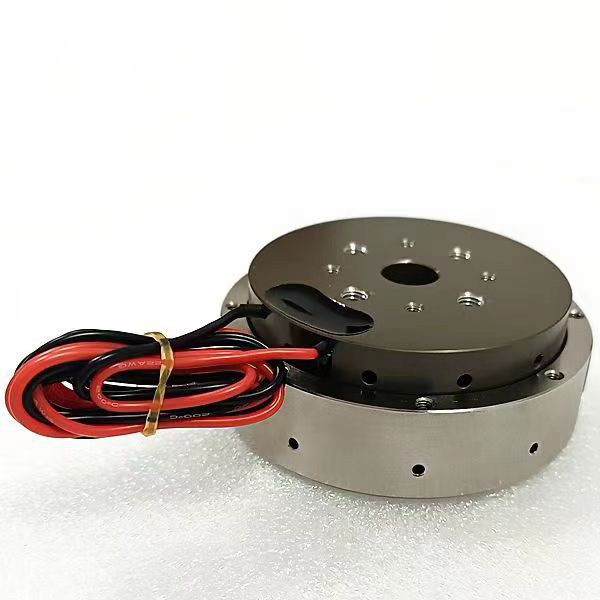

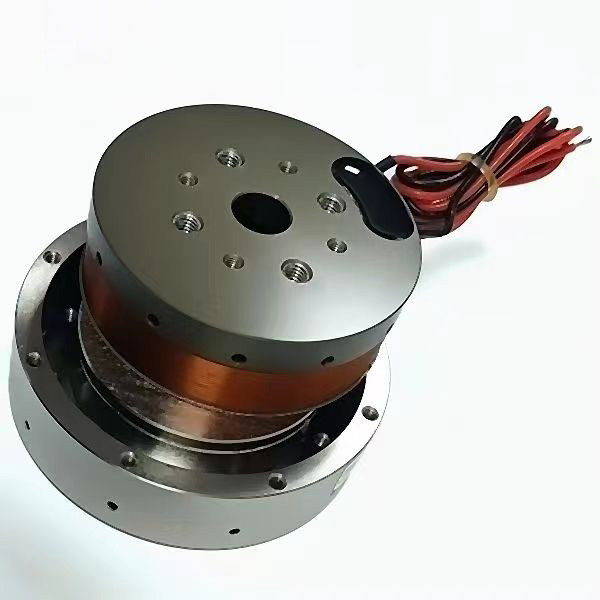

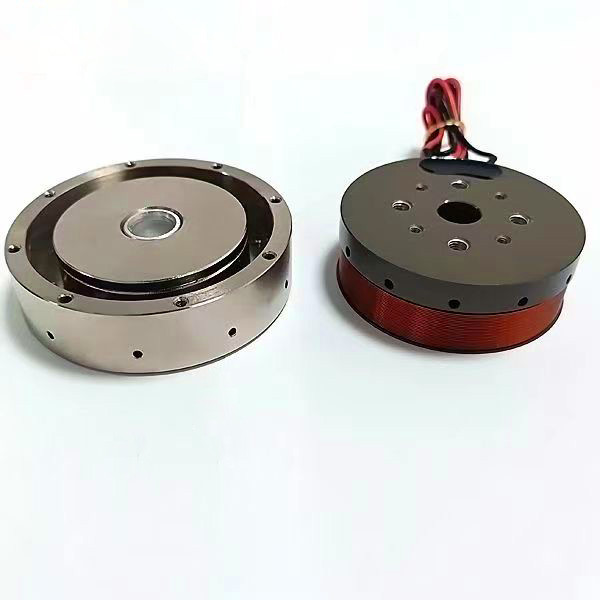

6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation
| Menşe yeri | Jiangsu, Çin |
|---|---|
| Marka adı | SUPT |
| Sertifika | ISO9001 |
| Model numarası | VCAR0006-0050-00A |
| Min sipariş miktarı | ≥5 |
| Fiyat | $160.00/pieces |
| Ambalaj bilgileri | Karton Ambalaj vb. |
| Teslim süresi | Genel 5-7 gün teslimat, hızlı 3-5 gün, müzakere edilecek toplu |
| Ödeme koşulları | T/T |
| Yetenek temini | Pazarlık edilebilir |
Ürün ayrıntıları
| Garanti | 3 ay-1 yıl | tip | Mikro Motor |
|---|---|---|---|
| Tork | İstekler | Yapı | Kalıcı Mıknatıs |
| Ürün Modeli | VCAR0006-0050-00A | Koruma Özelliği | Tamamen Kapalı |
| Hız (RPM) | Yüksek hız | Tepe kuvveti (N) | 6.2 |
| Maksimum hareket(mm) | 5 | ac motor(V) | 15.7 |
| Ağırlık rotoru(kg) | 8.2 | Stator çapı(mm) | 25 |
| Sürekli kuvvet(N) | 2.6 | ||
| Vurgulamak | 6.2N high dynamics voice coil motor,voice coil motor for vibration cancellation,VCM motor with active vibration control |
||
Ürün Açıklaması
Product Description
The SUPT MOTION VCAR0006-0050-00A is a high-dynamic cylindrical voice coil motor that delivers a peak thrust of 6.2 N over a 5 mm stroke. Designed specifically for active vibration isolation systems, this voice coil motor generates a counterforce to eliminate low-frequency disturbances in precision instruments, optical stages, and semiconductor metrology equipment.
This actuator delivers a continuous thrust of 2.6 N at 25°C, with a back-EMF constant of 3.57 V/m/s and excellent thrust-current linearity. Weighing only 8.2 g, the moving coil enables rapid acceleration, thereby achieving real-time vibration suppression. With a maximum operating voltage of 15.7 V, it integrates seamlessly with standard servo amplifiers.
Active vibration cancellation (AVC) systems require actuators with fast response times and predictable force output. Traditional piezoelectric actuators have limited stroke, while pneumatic isolators lack bandwidth. The VCAR0006-0050-00A motor bridges this gap with a 5 mm stroke and millisecond-level response times, effectively canceling vibrations caused by floor movement, fans, or nearby mechanical equipment.
This voice-coil motor is also suitable for high-speed tool servo systems in precision machining, where small, rapid Z-axis movements improve surface finish. In optical focus tracking, the 5-millimeter stroke enables continuous autofocus adjustment without mechanical backlash. Its cylindrical profile (25-millimeter diameter) simplifies integration with existing vibration isolation systems.
With a more compact design, higher reliability, and lower maintenance costs, this voice coil motor is widely applicable in industrial inspection cameras, machine vision systems, visual positioning for product sorting, and industrial imaging measurement instruments, providing efficient, stable, and precise autofocus solutions for the industrial automation sector.
Specifications:
Peak Force: 6.2 N
Continuous Force @25℃: 2.6 N
Total Stroke: 5 mm
Max Voltage: 15.7 V
Back EMF Constant: 3.57 V/m/s
Coil Weight: 8.2 g
Stator Diameter: 25 mm
Length: 18.2 mm
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Applications:
1.Active vibration isolation tables
2.Optical table disturbance rejection
3.Fast tool servo (FTS)
4.Autofocus tracking
5.Metrology equipment stabilization
