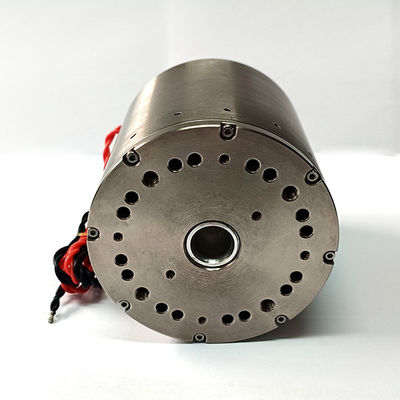

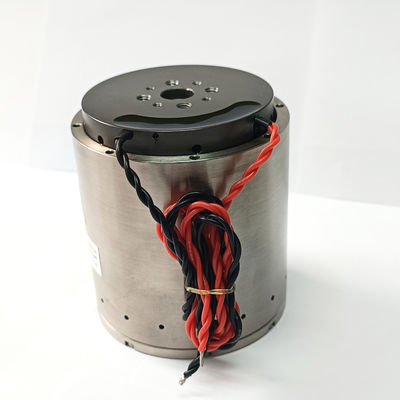

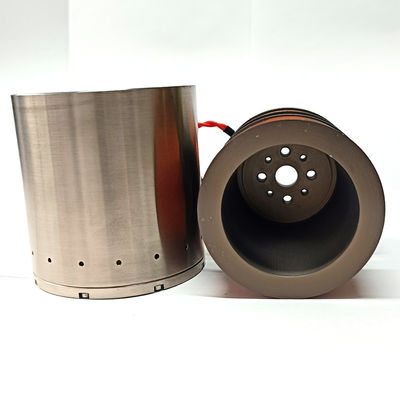

436N Very High Force High Speed Cylindrical VCM For Heavy Industrial Positioning
| Menşe yeri | Jiangsu, Çin |
|---|---|
| Marka adı | SUPT |
| Sertifika | ISO9001-2000,CE |
| Model numarası | VCAR0436-0250-00A |
| Min sipariş miktarı | ≥1 |
| Fiyat | $200.00/pieces |
| Ambalaj bilgileri | Karton Ambalaj vb. |
| Teslim süresi | Genel 5-7 gün teslimat, hızlı 3-5 gün, müzakere edilecek toplu |
| Ödeme koşulları | T/T |
| Yetenek temini | Pazarlık edilebilir |
Ürün ayrıntıları
| Garanti | 3 ay-1 yıl | tip | Silindirik Motor |
|---|---|---|---|
| Tork | İstekler | Yapı | Kalıcı Mıknatıs |
| Ürün Modeli | VCAR0436-0250-00A | Koruma Özelliği | Tamamen Kapalı |
| Hız (RPM) | Yüksek hız | Tepe kuvveti (N) | 436 |
| Maksimum hareket(mm) | 25 | ac motor(V) | 31.6 |
| Ağırlık rotoru(kg) | 775 | Stator çapı(mm) | 78.4 |
| Sürekli kuvvet(N) | 167 | ||
| Vurgulamak | High Force VCM for industrial positioning,High Speed Cylindrical VCM,Heavy Industrial Voice Coil Motor |
||
Ürün Açıklaması
Product Description
The SUPT MOTION VCAR0436-0250-00A is an ultra-high-thrust cylindrical voice coil motor capable of delivering a peak thrust of up to 436 N over a total stroke of 25 mm. This voice coil motor is specifically designed for heavy-duty industrial positioning, large-part assembly, and active vibration damping of heavy loads in manufacturing equipment.
In heavy-duty industrial applications—such as press-fit assembly, stamping assistance, or heavy-duty pallet positioning—traditional pneumatic or hydraulic cylinders are commonly used, but they lack precise position and force control.
The VCAR0436-0250-00A combines the high thrust of hydraulic systems with the precision of electric servo control. Its 25-millimeter stroke is suitable for part insertion or clamping operations, while its peak thrust of 436 N can handle tight interference fits.
This voice coil motor is also ideal for active vibration cancellation in heavy-duty machinery such as large presses or stamping equipment, where low-frequency vibrations can affect product quality. Its high continuous thrust enables it to counteract significant disturbances.
Compared to traditional drive solutions, this voice coil motor features zero backlash, low hysteresis, fast response, high precision, and strong resistance to interference, significantly improving response speed, positioning accuracy, and reliability in heavy industry.
For original equipment manufacturers (OEMs) producing heavy-duty automated equipment or upgrading hydraulic systems to precision electric systems, this high-thrust voice coil motor offers a reliable, clean, and controllable alternative.
Specifications:
Peak Force: 436 N
Continuous Force @25℃: 167 N
Total Stroke: 25 mm
Max Voltage: 31.6 V
Back EMF Constant: 37.2 V/m/s
Coil Weight: 775 g
Stator Diameter: 78.4 mm
Length: 110 mm
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Applications:
-
Press-fit insertion
-
Heavy pallet positioning
-
Stamping assist actuators
-
Heavy machinery active vibration cancellation
-
Clamping and holding
